Equipment Audit & Custom Wall Charts
Switching lubricant brands can be nerve-wracking. Don't worry - we've got you covered. Our comprehensive equipment audit and custom wall chart service ensures every technician knows exactly which lubricant goes in every sump on every machine.

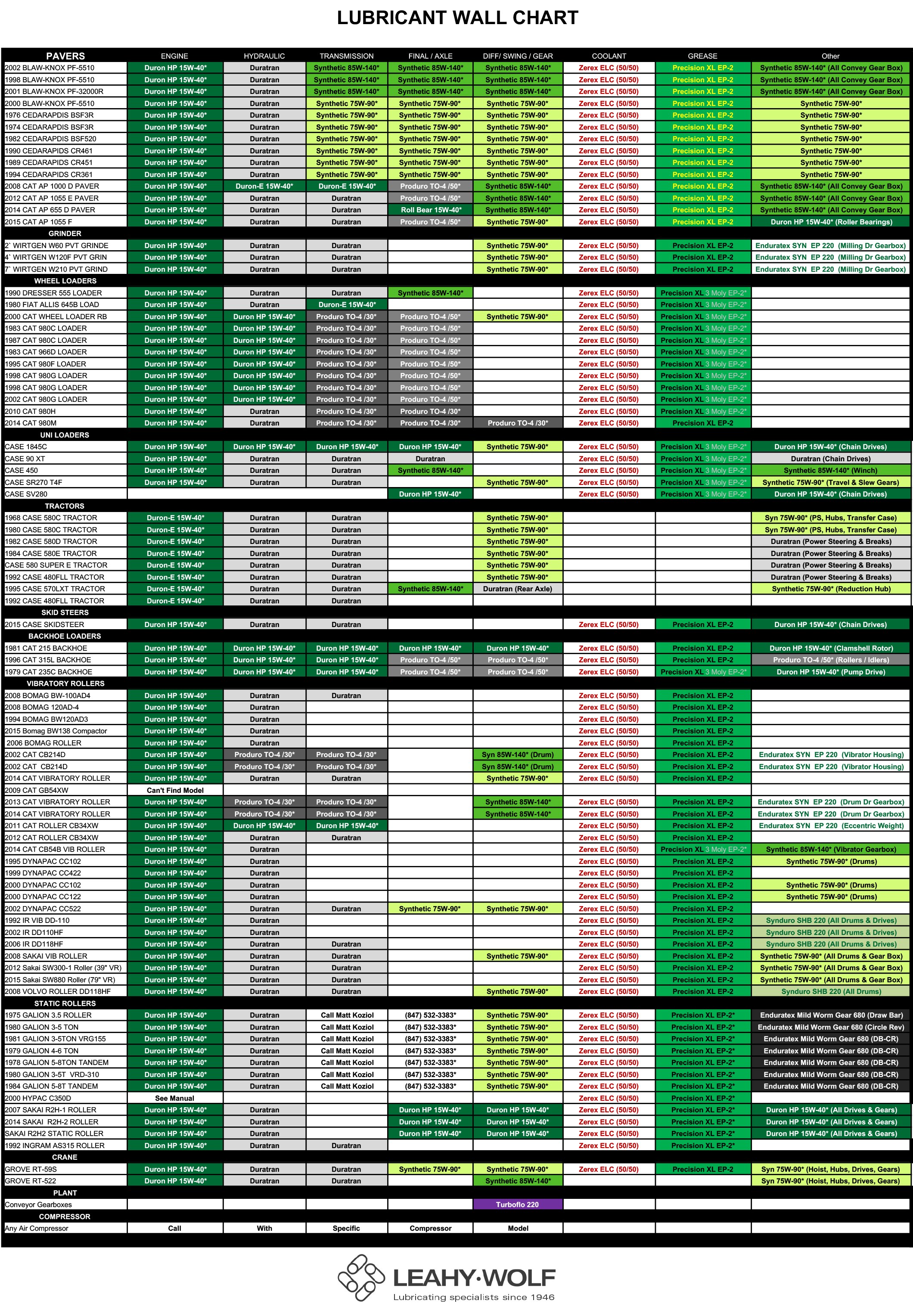

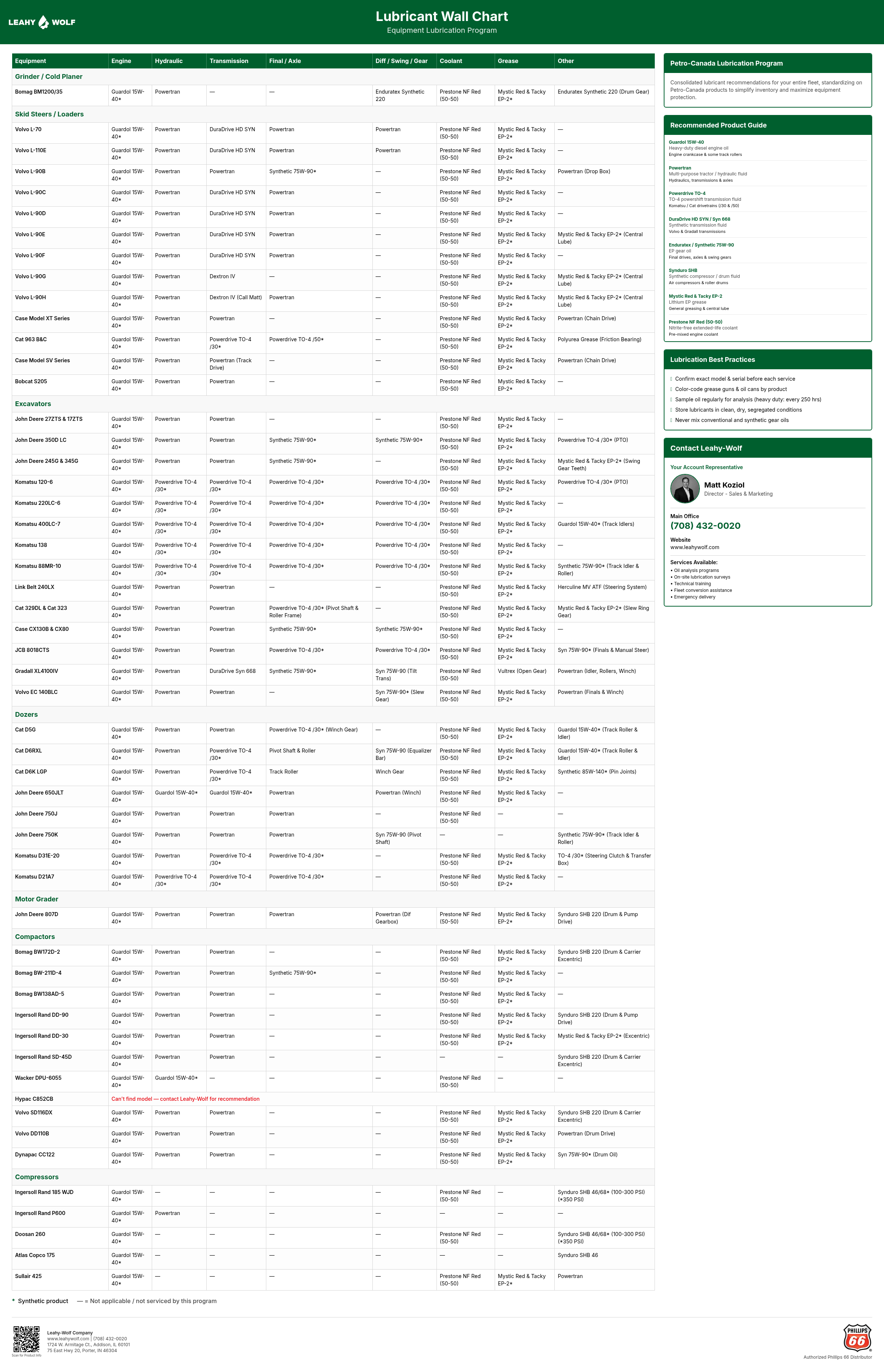

Sample Wall Chart
Worried About Misapplication?
Modern equipment has multiple sumps requiring different lubricants - engine oil, hydraulic fluid, transmission fluid, gear oil, grease points, and coolant. One wrong fill can mean expensive repairs or voided warranties. Our wall chart system eliminates the guesswork.
Our Process
From fleet survey to finished wall chart, we handle every step
Fleet Survey
We survey your entire fleet and separate the types of equipment by category and model numbers.
OATS Database Analysis
Your fleet is run through the OATS database - the largest and most sophisticated OEM/lubricant application database in the world.
Custom Wall Chart Creation
We create a 24" x 36" laminated wall chart with color-coded product recommendations for every sump on every machine.
Installation & Training
Charts are delivered and installed in your shop. We can provide training to ensure your team understands the new system.
Powered by the OATS Database
The Oil Application Technical Service (OATS) database is the largest and most sophisticated OEM/lubricant application database in the world. When we run your equipment through OATS, you can be confident that every lubricant recommendation meets or exceeds manufacturer specifications.
- Covers all major equipment manufacturers
- Continuously updated with new models and specs
- Cross-references OEM requirements to available products
- Identifies capacity and service intervals
OATS Database
Oil Application Technical Service - The industry's most comprehensive lubricant specification database
Benefits of Custom Wall Charts
More than just a reference - it's a system that reduces errors and builds confidence
Eliminate Misapplication
Color-coded charts make it easy for any technician to identify the correct lubricant for each application.
ESL-Friendly
Visual color coding is especially valuable for English as a Second Language employees, reducing language barriers.
Reduce Training Time
New mechanics can quickly reference the wall chart instead of searching through manuals or guessing.
Smooth Brand Transitions
Switching lubricant suppliers doesn't have to be nerve-wracking when every application is clearly mapped out.
OEM Compliance
OATS database ensures all recommendations meet or exceed OEM specifications for your equipment.
Reduce Warranty Issues
Proper lubricant selection protects your equipment warranty and prevents costly misapplication damage.
Especially Valuable for Diverse Workforces
Color-coded wall charts transcend language barriers. For shops with English as a Second Language (ESL) employees, visual identification significantly reduces the possibility of putting the wrong oil in. Colors are universal - everyone can match a color to a container.
What's Included
Complete Fleet Survey
We document every piece of equipment, model number, and application point
Laminated Wall Chart
24" x 36" durable laminated chart designed for shop environments
Color-Coded System
Easy visual matching between chart colors and product labels
Ready to Simplify Your Lubrication Program?
Whether you're switching lubricant brands or just want to improve your current system, our equipment audit and wall chart service takes the guesswork out of lubricant selection.
