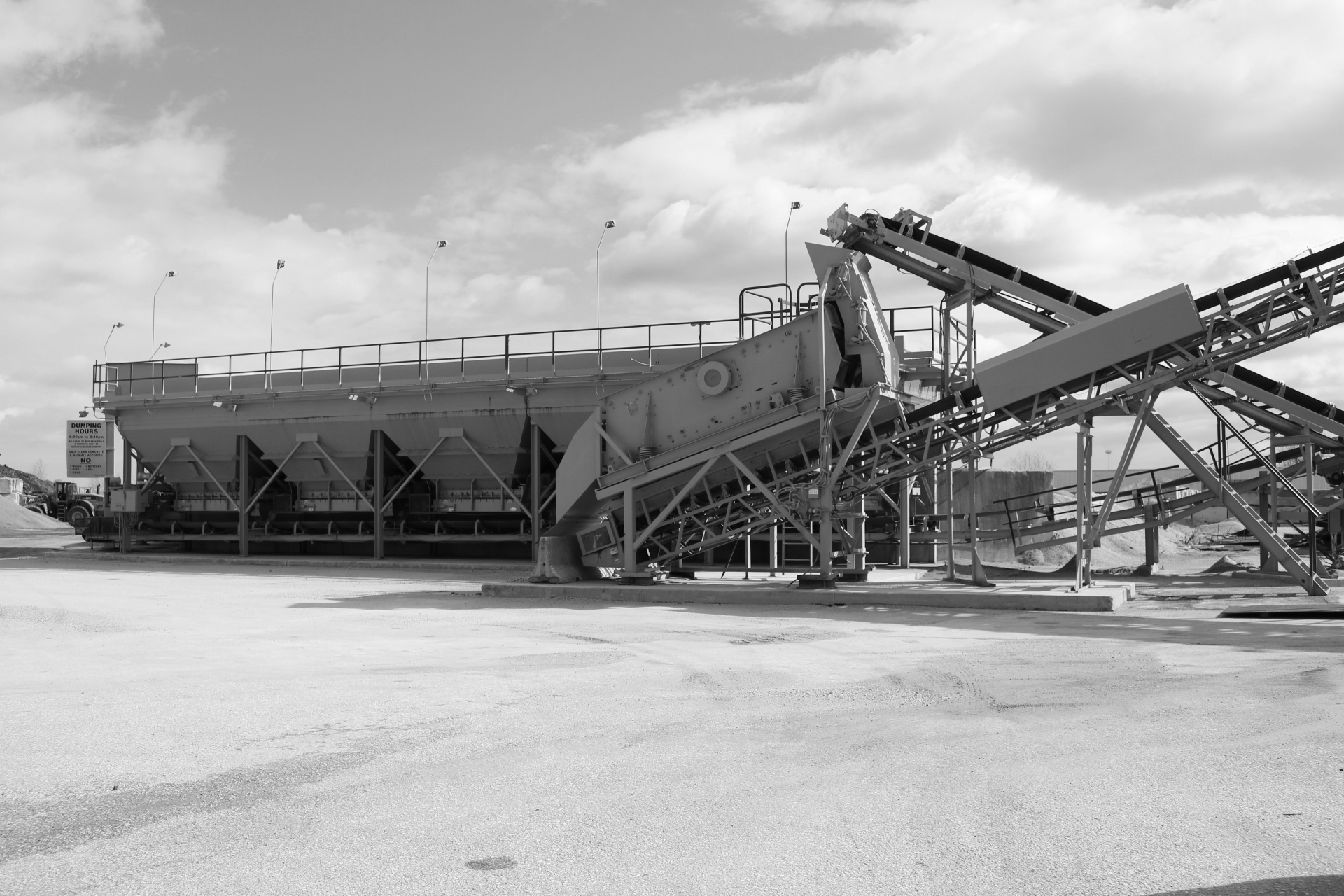

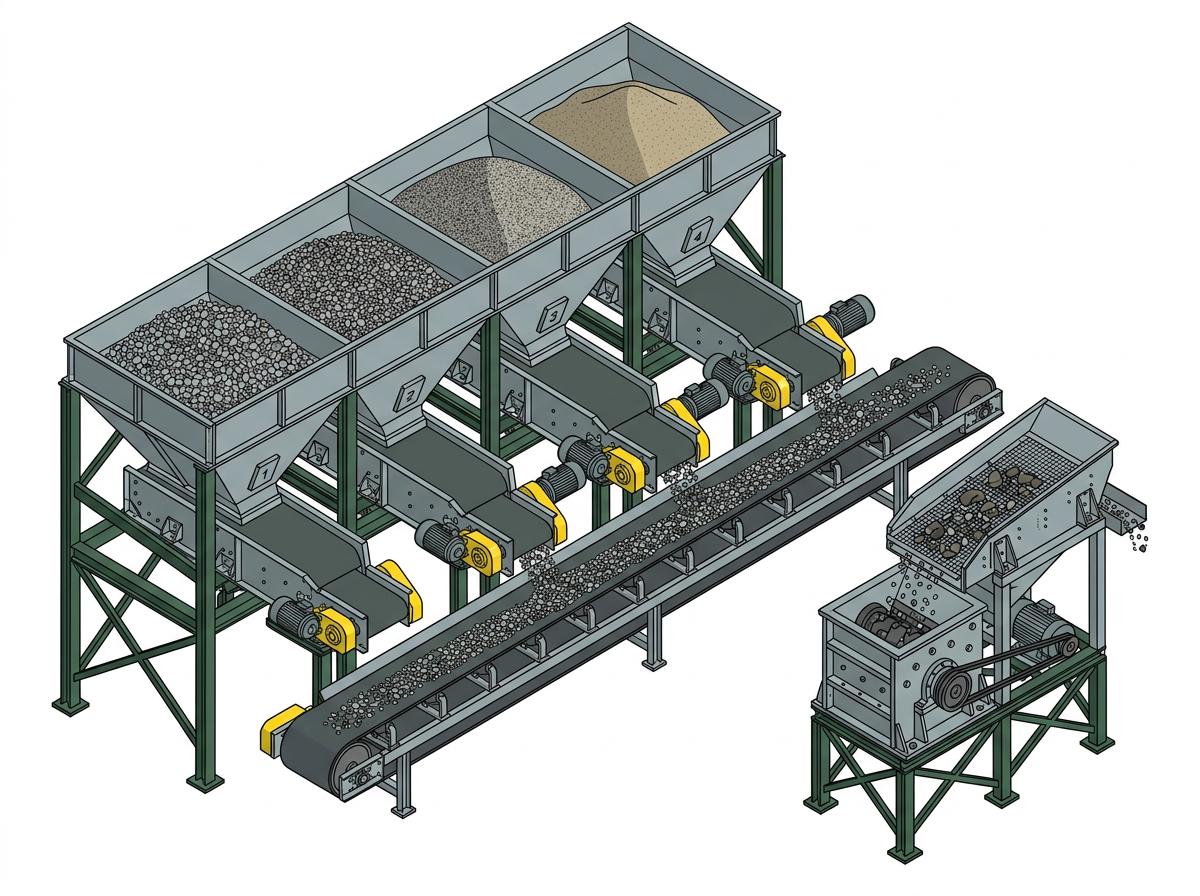

Cold Feed & RAP
Dusty, wet, and outdoors. Water resistance matters more than heat.
Bin feeder gear drives
Belt pulleys and idler bearings
RAP crusher lid power unit
Scalping screen bearings
Grease or oil bath, by design
Industries We Serve
Asphalt Manufacturing
From the cold feed bins to the load-out silo, a hot mix plant runs on heat transfer fluid, gear oil, hydraulics, plant air, and grease that has to survive 300°F mix. We map the right product to every section of your plant.

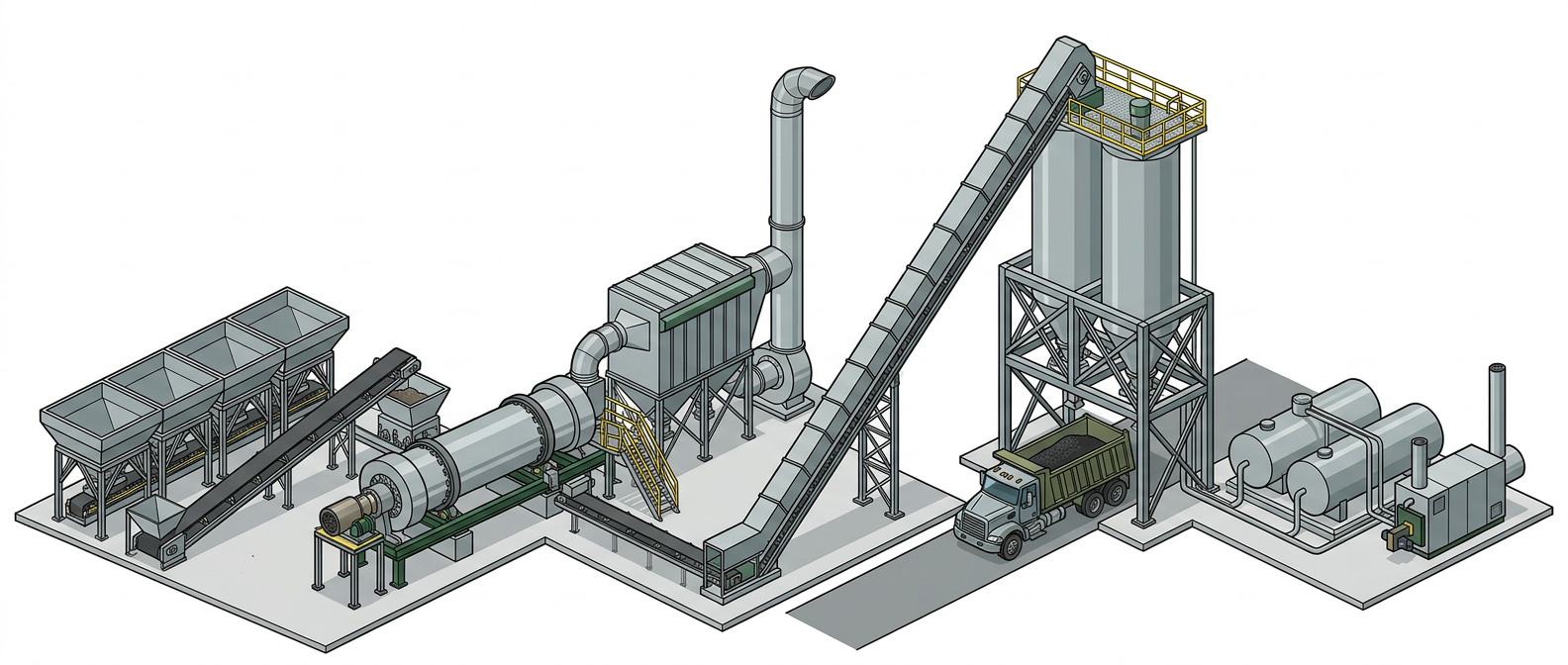

Lubrication by Plant Section
Follow the aggregate from cold feed to load-out
Every section of a hot mix plant wears its lubricants differently. Here is what goes where, in the order material moves through the plant. Tap a product to jump to its details.

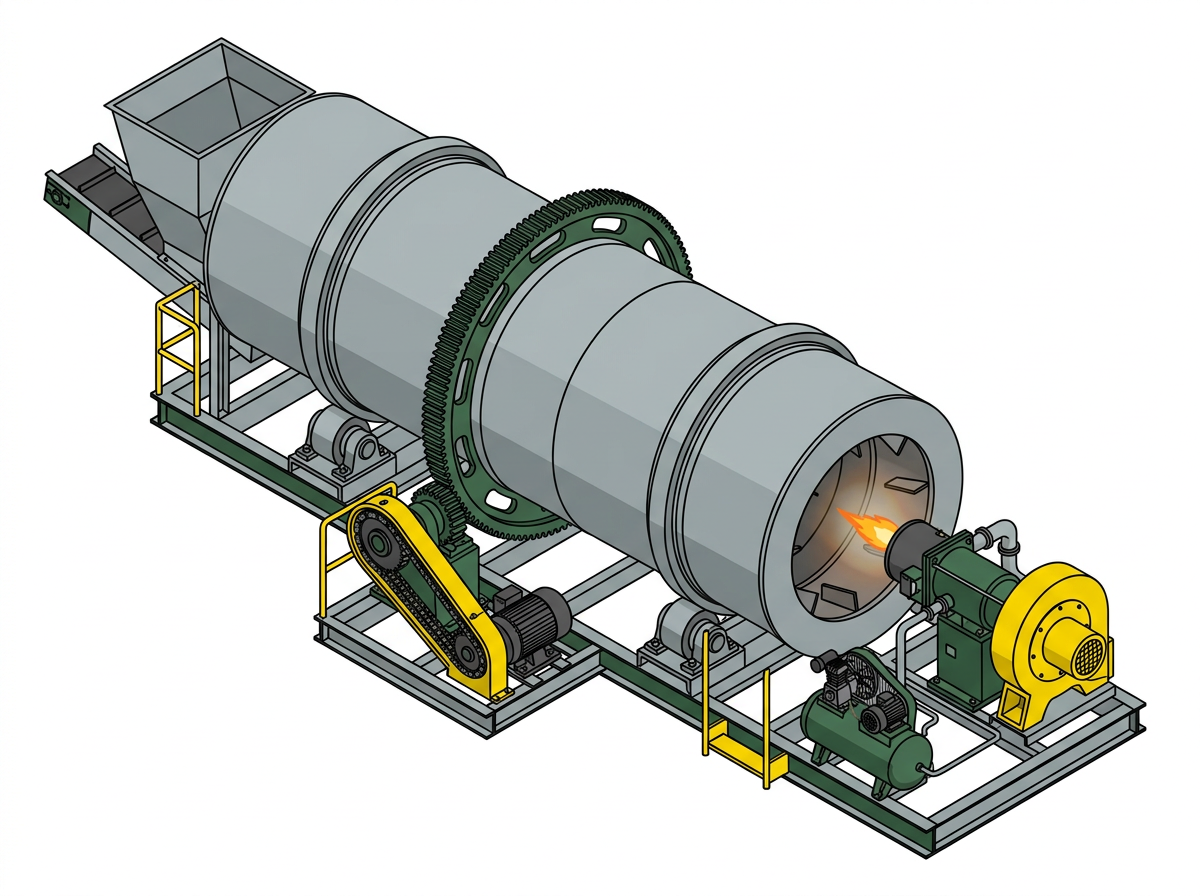

Drum & Burner
The hottest bearings in the plant, plus the air that atomizes the fuel.
Trunnion and friction-roll bearings
Chain or girth-gear drum drives
Open-gear service
Burner atomizing air compressor
Burner blower bearings

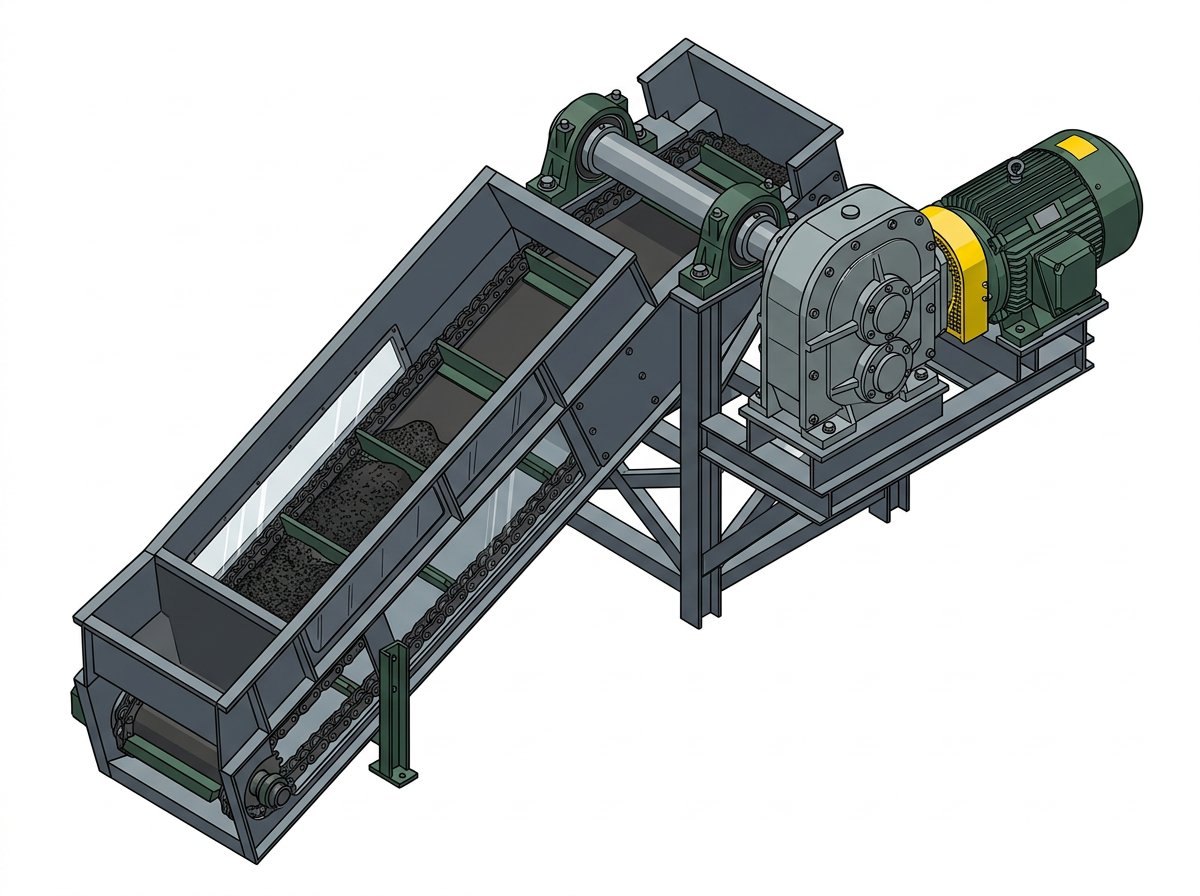

Conveyors & Elevators
Chain and reducers running next to 300°F mix, all shift long.
Drag slat and hot elevator chain
Slat conveyor and elevator reducers
Head shaft bearings
Hydraulic chain tensioner

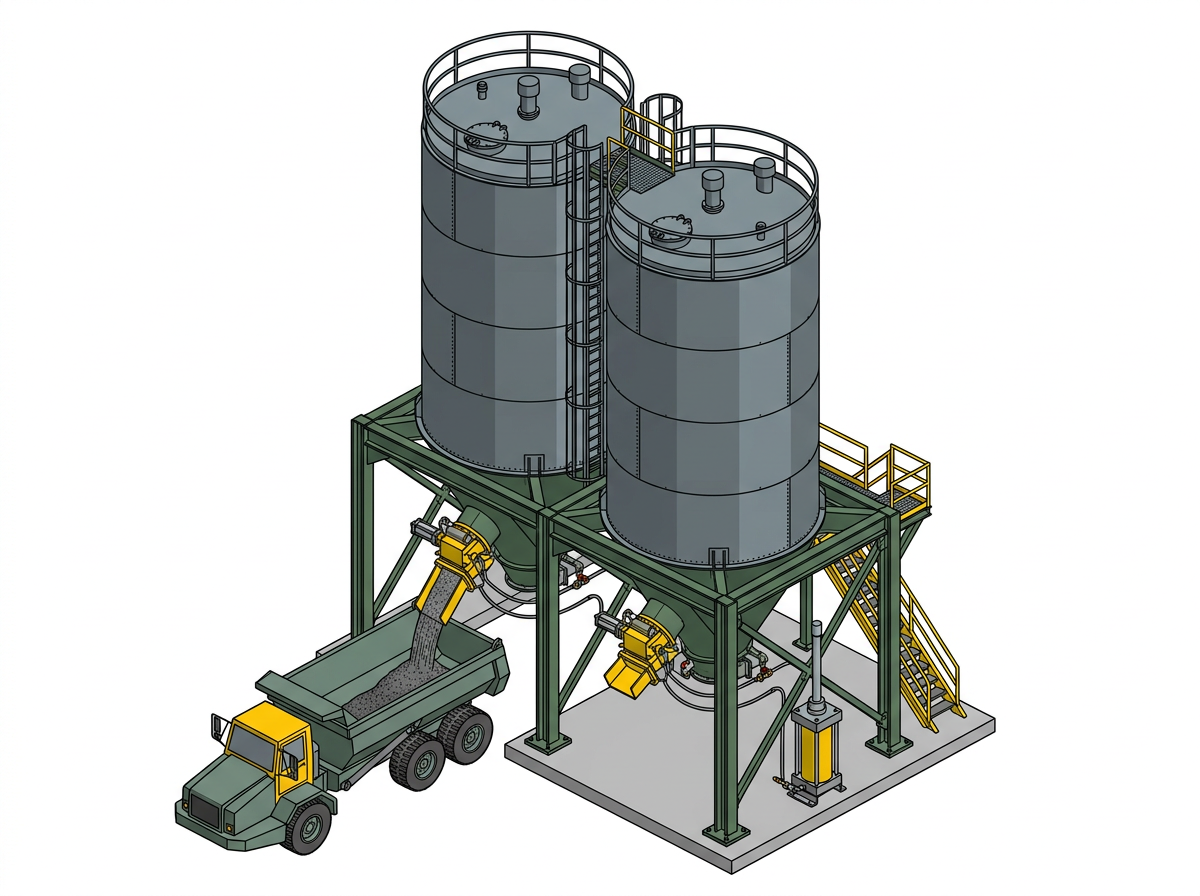

Silos & Load-out
Gates and cylinders that have to open on the first try, every truck.
Plant air compressor (gate cylinders)
Gate pivots and bushings
Self-erect silo hydraulics
Silo cone heat

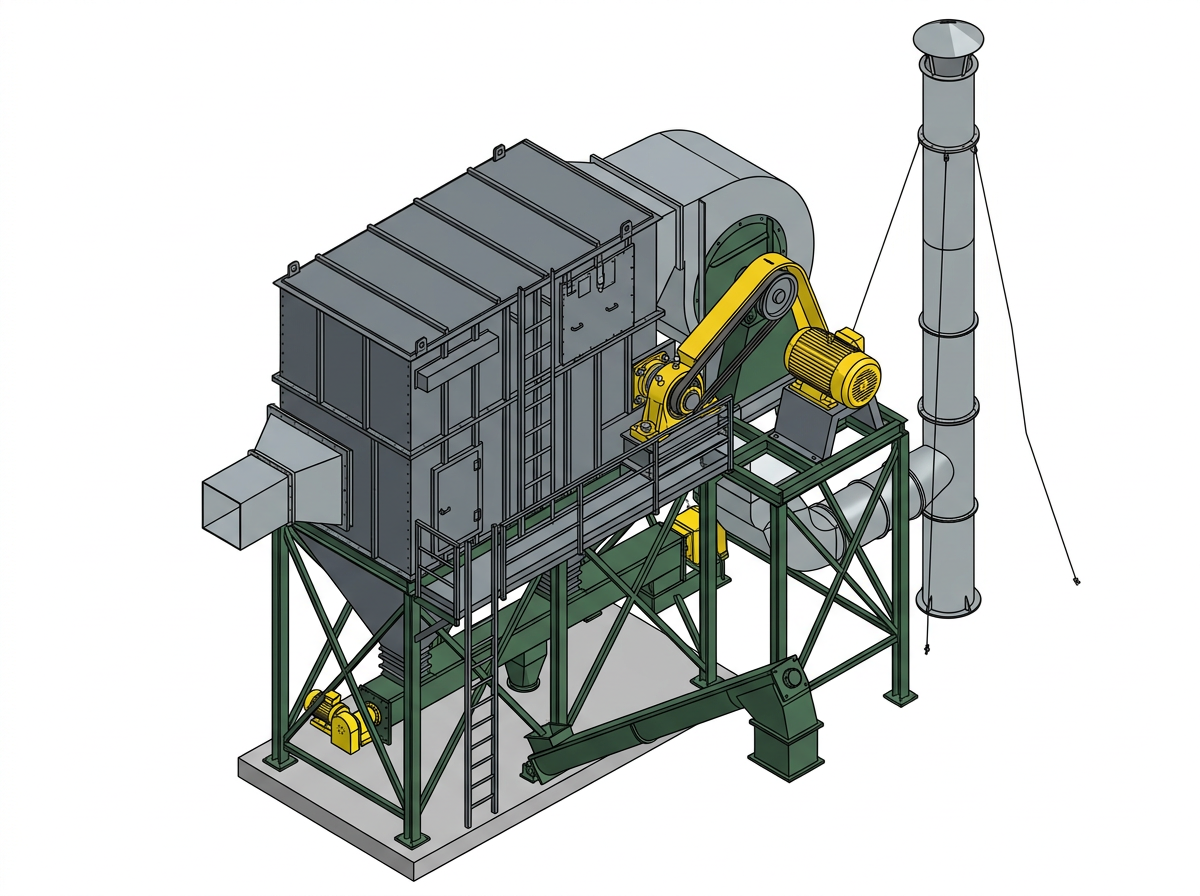

Baghouse & Fans
Large fans at high speed. Bearing temperature is the early warning.
Exhaust and blue smoke fan bearings
Grease or ISO 68/100 oil
Dust screw conveyor reducer
Fan motor bearings

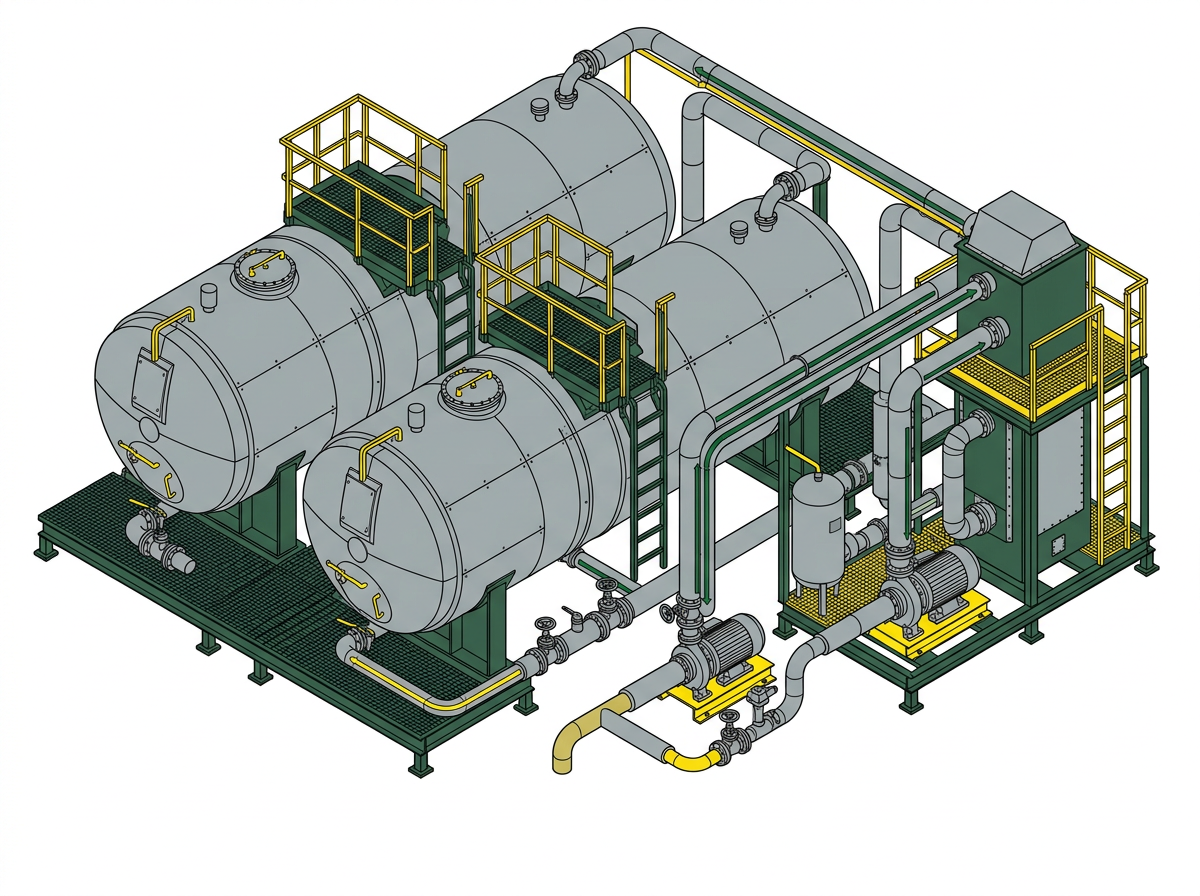

Tanks & Heaters
The whole thermal fluid loop, not just the heater.
Thermal fluid heater (oil-fired or electric)
Asphalt and additive tank coils
Asphalt (AC) pump bearings

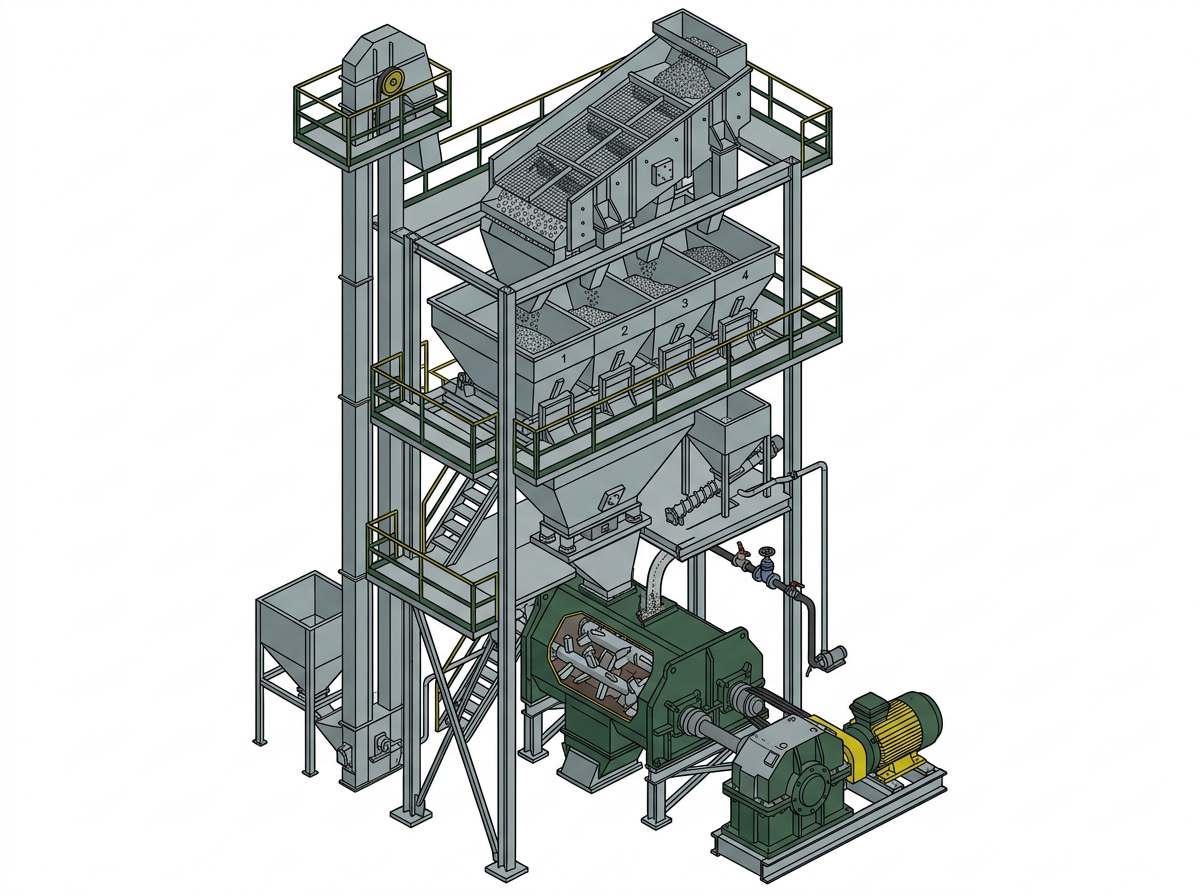

Batch Tower
The pugmill reducer carries the heaviest load in the plant.
Pugmill double-output reducer
ISO 220/320; Synduro if bronze
Pugmill shaft bearings
Incline vibrating screens
Weigh box cylinders (plant air)

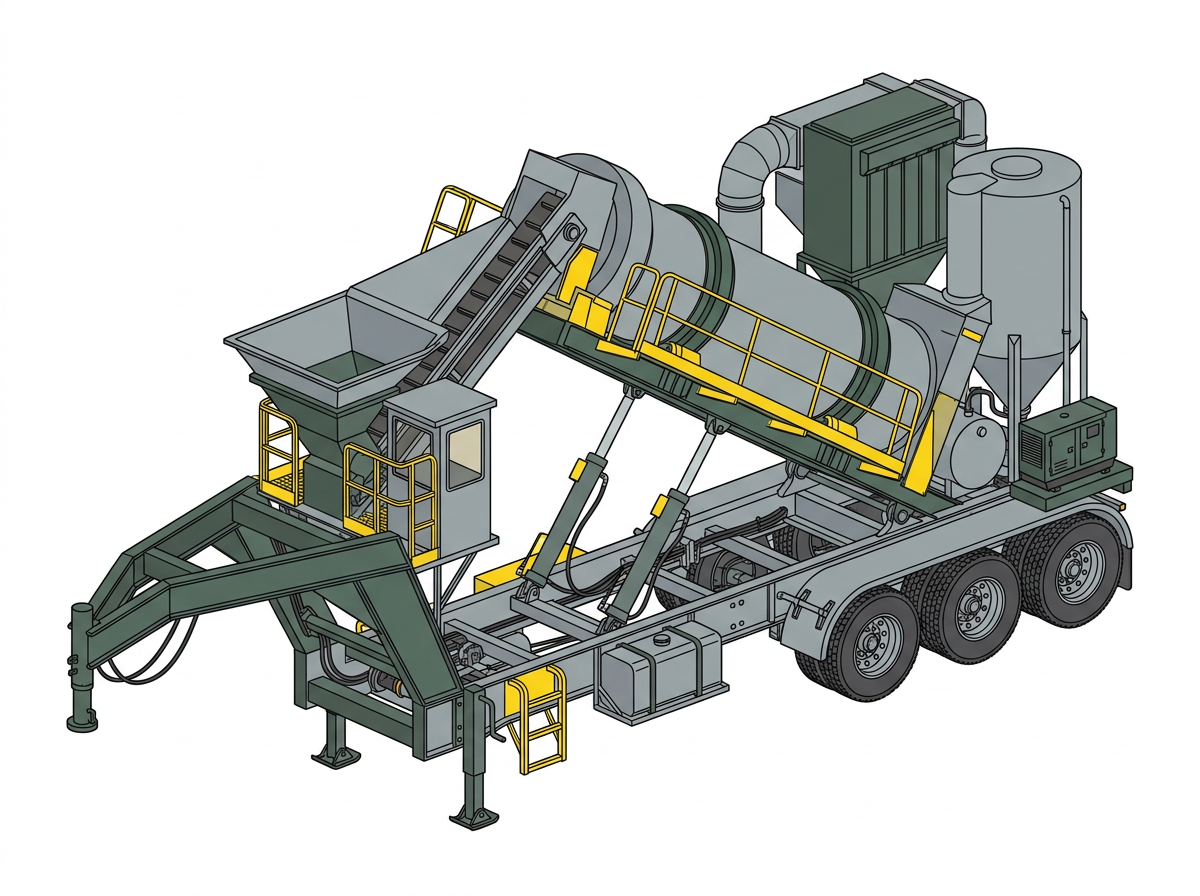

Portable Running Gear
Moves between jobs a few times a season and sits outside in between.
Axle wheel bearings
Fifth-wheel pins and plates
Drum and silo erection hydraulics
The Product Lineup
Ten products cover the whole plant
A short, consolidated list means fewer drums on the shelf and less chance of the wrong oil going in the wrong gearbox.
Heat Transfer Fluid
One fluid runs through the heater, tank coils, silo cones, and jacketed lines.
Heat Transfer
PETRO-THERM Heat Transfer Oil
For non-pressurized, liquid phase, closed heat transfer systems, including oil-fired and electric thermal fluid heaters.
- Range:
- Up to 599°F
- Used on:
- Heaters, tank coils, silo cones, jacketed lines
Gear Oils
Reducers on feeders, conveyors, elevators, pugmills, and screens.
EP Gear Oil
ENDURATEX EP 220 / 320 Gear Oil
Extreme pressure gear oil for enclosed industrial drives under normal, heavy, or shock loading.
- Range:
- -21°F to 486°F
- Used on:
- Pugmill reducers, feeder and conveyor drives
Not safe for bronze gears
View DetailsTop pick
Synthetic Gear OilSYNDURO Synthetic SHB 220 Gear Oil
PAO base oils protect high-speed gears and run longer between changes on hot-side reducers.
- Range:
- -42°F to 469°F
- Used on:
- Elevator and slat conveyor reducers
Safe for bronze and brass gears
View DetailsR&O Oil
TURBOFLO R&O 68 / 100 / 220
Rust and oxidation inhibited oil for oil-bath vibrating screens and oil-lubricated fan bearings.
- Range:
- 46°F to 231°F
- Used on:
- Screen gearboxes, fan pillow blocks
Hydraulic, Compressor & Chain
Power units, plant air, burner atomizing air, and hot-side drive chains.
Hydraulic
HYDREX AW Hydraulic Fluid
Anti-wear hydraulic fluid for portable plant erection, self-erect silos, and crusher lid power units.
- Range:
- ISO 32 / 46 / 68
- Used on:
- Hydraulic power units, tensioners
Compressor
COMPRO Compressor Oil
Rotary and reciprocating compressor oil for plant air and burner atomizing air that runs gates and cylinders.
- Range:
- ISO 32 / 46 / 68
- Used on:
- Plant air, burner atomizing air
Chain Lubricant
High-Temperature Chain Oil
Synthetic chain lubricant that stays on the pins at hot mix temperatures without coking or flinging off.
- Range:
- Rated for ~300°F service
- Used on:
- Slat conveyor and hot elevator chain
Ask us for the right grade for your chain
Ask an ExpertGreases
Bearings from the cold feed belts to the trunnions at 300°F and up.
Top pick
Calcium SulphonatePEERLESS OG2 Red #2 Grease
Multi-application calcium sulphonate complex grease that holds up in wash-down, rain, and open gears.
- Range:
- -13°F to 325°F
- Used on:
- Cold feed, open gears, running gear
Lithium Complex
PRECISION XL EP #2 Grease
Lithium complex grease for heavy-duty and general-purpose bearings at low or high speeds.
- Range:
- -4°F to 320°F
- Used on:
- Fan, screen, and motor bearings
High-Temperature
Mystik JT-6 Hi-Temp Grease
High-temperature grease for bearings that sit next to the drum, pugmill, or hot aggregate all day.
- Range:
- High-temp service
- Used on:
- Trunnions, pugmill and head shaft bearings
Heat Transfer System Care
The fluid that touches every tank, silo, and line
Thermal fluid runs from the heater through asphalt and additive tank coils, silo cones, jacketed lines, and valves. When it breaks down, the whole loop pays for it.
The Problem

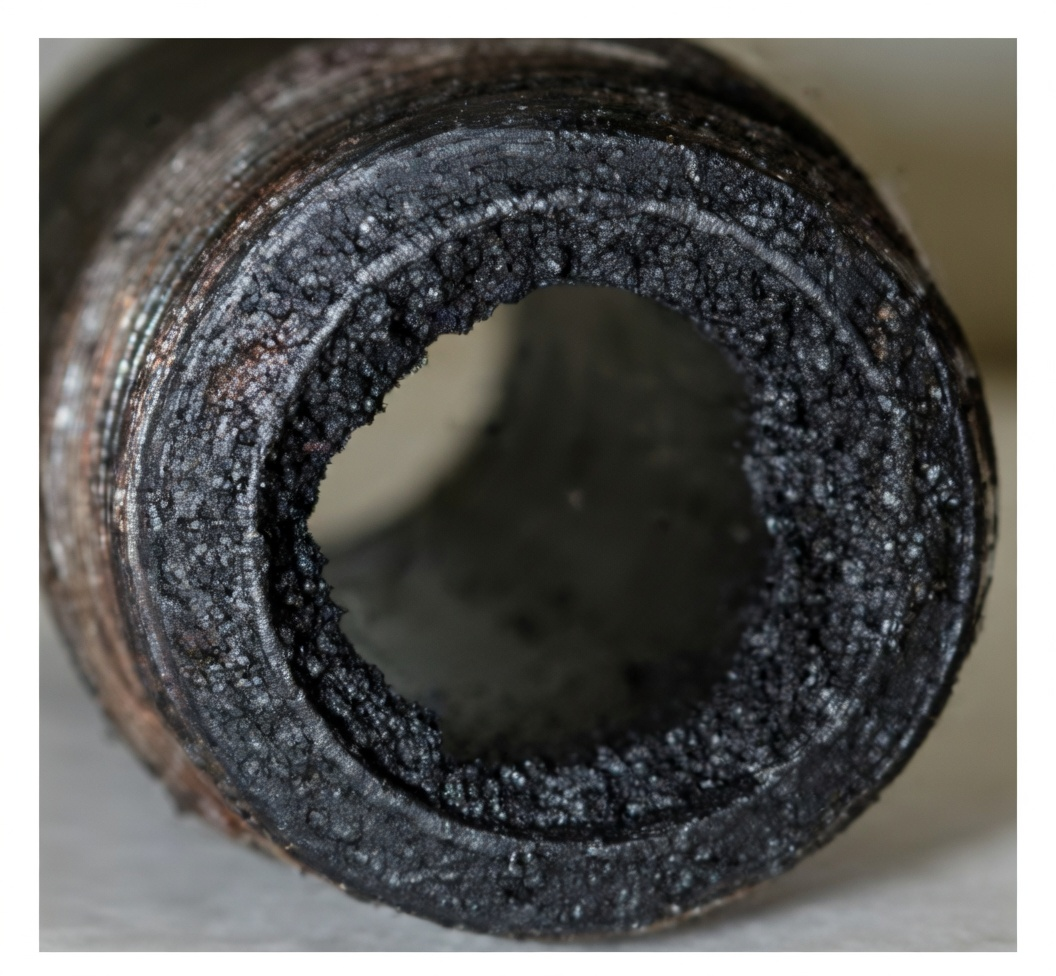

Carbon & coke buildup
Degraded fluid lays carbon on pipe walls. That layer insulates the pipe, cuts heat transfer, and restricts flow.
- Reduces thermal efficiency by up to 30%
- Increases energy costs significantly
- Creates potential fire and safety hazards

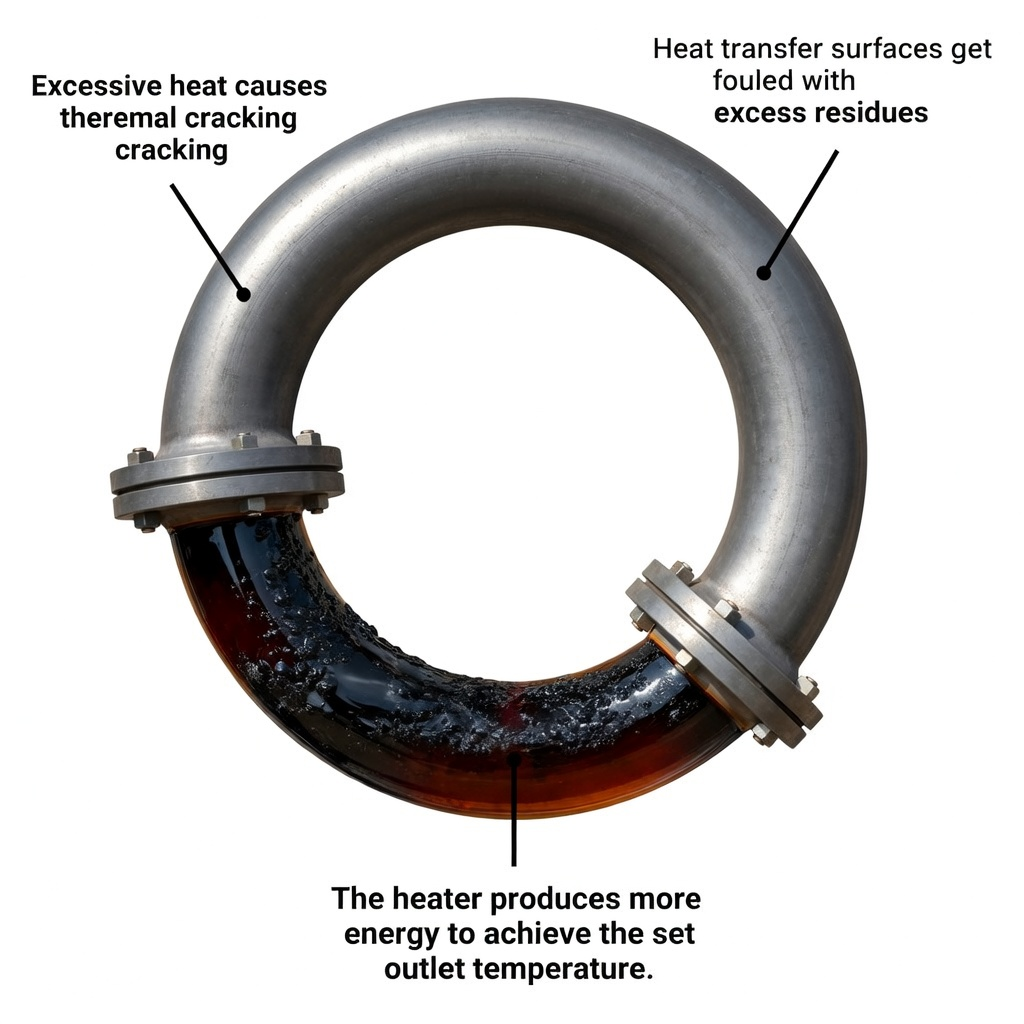

A self-reinforcing cycle
- 1Excessive heat causes thermal cracking, breaking down the fluid's molecular structure
- 2Fouling occurs as degraded fluid deposits carbon on heat transfer surfaces
- 3Energy demand rises as the heater works harder to reach temperature through fouled surfaces
- 4The cycle repeats with higher heat exposure causing even more cracking
Already fouled? Clean, then flush.
CALFLO Cleaning Fluid
NSF HT1 RegisteredCleans dirty or heavily carbonized systems running aromatic or mineral-based heat transfer fluids.
- Max operating temp: 212°F (100°C)
- Use with CALFLO Flushing Fluid
CALFLO Flushing Fluid
Rinse & FlushRinses residual cleaning fluid and loosened contaminants out of the loop before refilling.
- Removes cleaning fluid residue
- Prepares system for new fluid
$250 value, free
Free heat transfer fluid analysis
Cracking creates low boilers that drop flash point and can cause auto-ignition. Testing tells you where your fluid stands before it costs you fuel or a fire.
- Kinematic ViscosityASTM D445
- Acid NumberASTM D664
- Flash PointASTM D92
- Simulated DistillationASTM D2887
- Water ContentASTM D1744
- Metals ContentASTM D5185

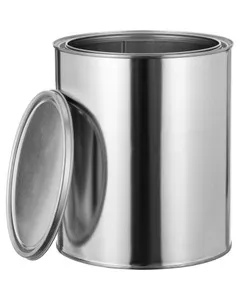

Sample can included
Around the Yard
EPIC DS Dust Suppressant
A plant-based natural ester that keeps haul road and stockpile dust down, so less of it ends up in your bearings, breathers, and baghouse.
- 100% biodegradable and environmentally sustainable
- Non-corrosive to trucks, loaders, and plant equipment
- Outperforms chloride-based suppressants
- 15–20 minute cure time per spray pass
Where plants use it
- Haul roads
- Stockpiles
- Truck scale approaches
- Gravel yards
Packaging
5 gal Pail55 gal Drum275 gal ToteBulk
Want a lube chart for your plant?
Our team will walk your plant, list every lube point, and build a chart for your crew to post by the control house. Contact us for a free consultation.
